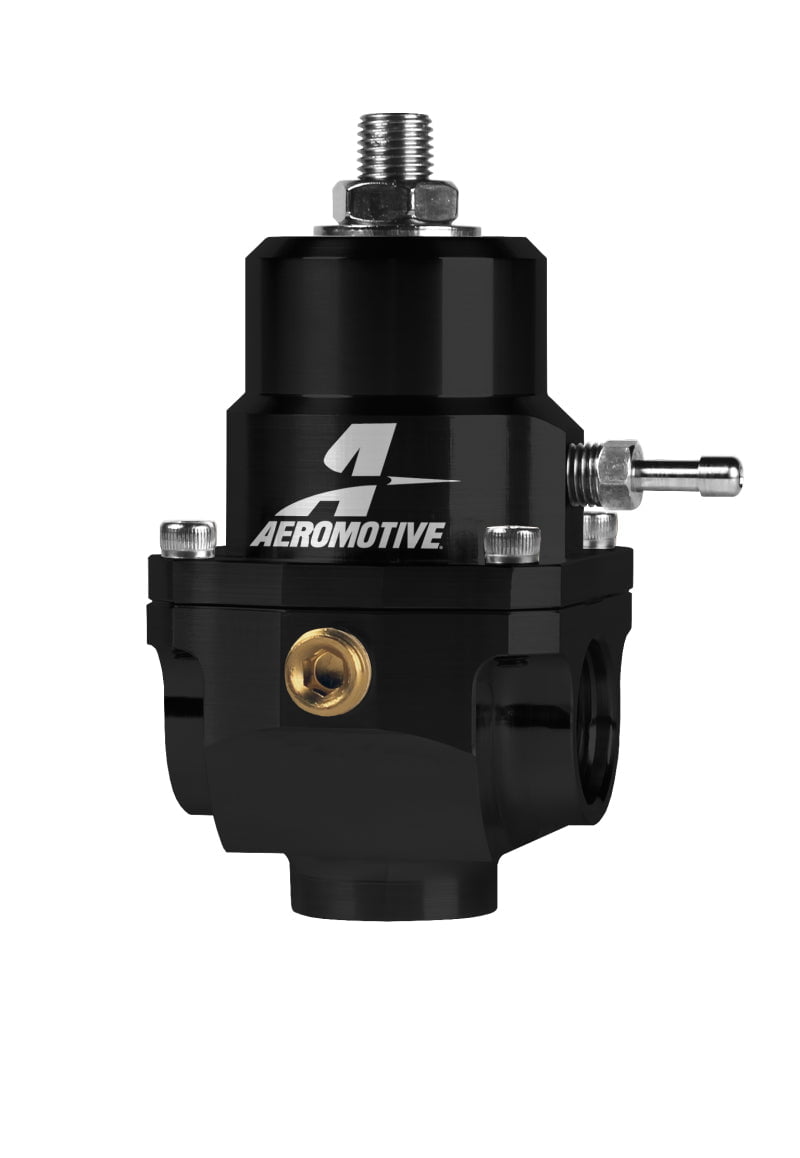

AEROMOTIVE X1 SERIES EFI FUEL PRESSURE REGULATOR (35-75 psi) 13303
EFI return style Regulator for Return Style Systems
- Base fuel pressure adjustable from 35-75 PSI.
- Vacuum/Boost reference capability.
- 1:1 rising rate for forced induction engines.
- Gasoline, ethanol, alcohol and diesel compatible.
- 2 – ORB -08 inlet/outlet ports on the sides.
- 1 – ORB-08 return port on the bottom port.
- 1 – 1/8″ NPT Gauge Port with plug.
- 1/16″ NPT Boost Port with 5/32″ hose barb.
- Compatible with X1 High Flow EFI Conversion kit.
- Compatible with X1 Carb Conversion kit.
- 0.188″ return style with matching spring and poppet.
- Handles up to 150 GPH with AN-08 return line.
- Suitable for any Aeromotive Pump up to A1000.
- Mounting bracket included (not shown).
- This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications.
*Item ships directly from vendor.
