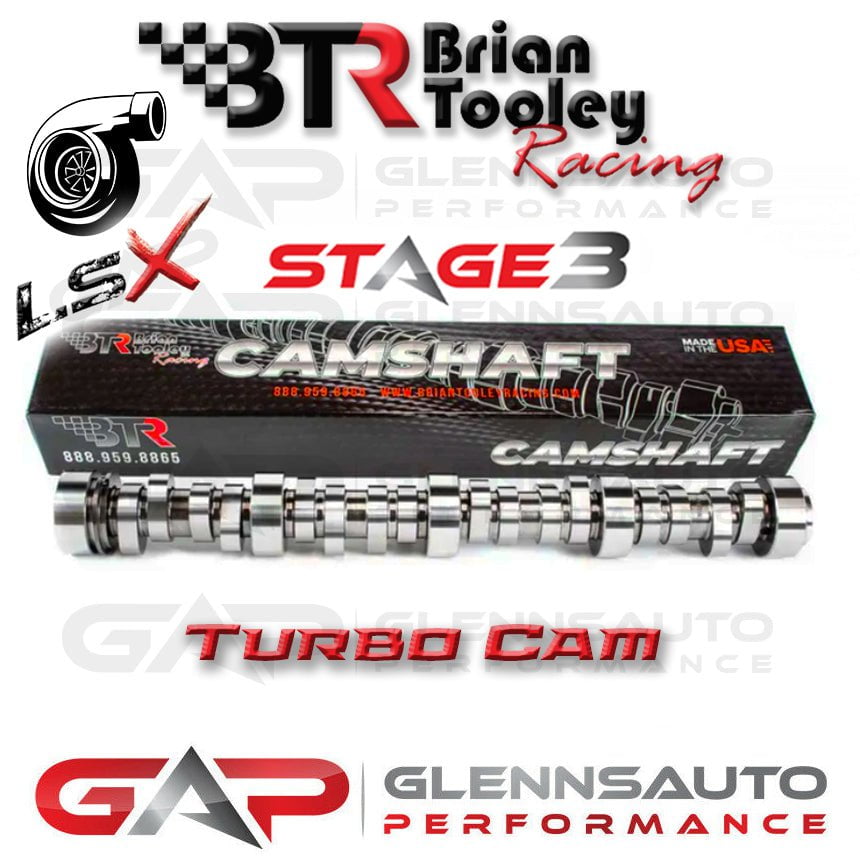

Developed in-house using BTR designed lobes, the new Stage 3 Turbo cam is the latest offering in the BTR line up. We went back to the drawing board to find even more power and torque. This V2 version of our Stage 3 Turbo camshaft has revised valve events designed to help produce more mid range power with no loss in top end power compared to our previous Stage 2 camshaft. This camshaft has a moderate idle and makes great mid and top end power at the sacrifice of some low end torque when used in smaller cubic inch engines. Works well with 5.3/6.0 combos being pressurized by an S400 (or similar size) turbocharger.
These new BTR lobe designs were Spintron and Engine Dyno tested to achieve the highest overall power curve while also maintaining strict valvetrain stability and durability standards.
Requires the use of our SK001 .660" Lift Platinum spring kit with titanium retainers and hardened pushrods or our .685" Lift SK702 spring kit for even higher rpm potential.
Â
 Specs are 224/23X .618"/.618" 114 LSAÂ
Â
| Part Number |
BTRTURBOSTG3
|
| Cam Type |
Turbocharged |
| Brand |
Brian Tooley Racing |
| Engine Type |
Gen III/IV |
| Cam Style |
Hydraulic Roller |
| Lift |
.618"/.618" |
| Duration |
224/23X |
| Lobe Separation Angle |
114Â |
Â
*Item ships directly from vendor.
