FAST LSX INTAKE MANIFOLD - CATHEDRAL #54039B
CARB E.O. #D-279-9

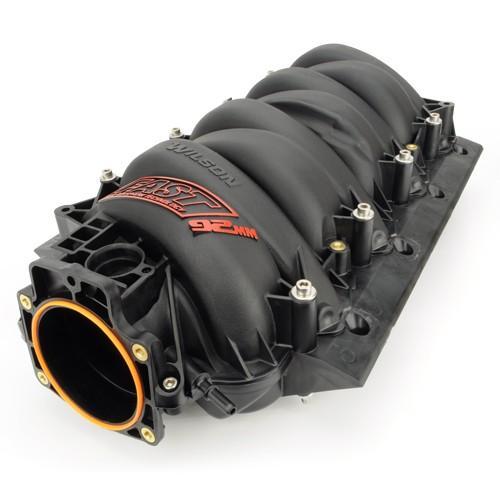

The patented LSX™ 92mm Black Intake Manifold from FAST™ is the only three-piece Gen III (cathedral port) composite manifold proven to deliver increased performance without compromising bottom-end drivability or high RPM power. For both street and racing applications, the new black intake manifold is an easy bolt-on installation for GM Gen III (LS1, LS2 & LS6) engines and is designed to work with the FAST™ Big Mouth 92mm Throttle Body™. The new FAST™ LSX™ 92mm Black Intake Manifold maintains the performance gains achieved over stock intake manifolds with no loss in drivability or low RPM torque. While the new stylish, black intake manifold delivers terrific performance right out of the box, it can be ported by the customer for even more flow. As requested by previous LSX™ customers, the intake features the added benefits of corrosion-free stainless steel assembly bolts, an improved throttle body sealing flange and o-ring gasket and threaded insert throttle body mounts that provide increased durability.
Features & Benefits:
- New “Black” Gen III intake manifold with 92mm throttle body intake opening & added refinements
- Improved throttle body sealing flange & o-ring gasket
- Includes stainless steel bolts, threaded insert throttle body mounts & mounting hardware
- Incorporates high-quality polymer materials, which resist “heat sink” effect of aluminum
- Maximizes potential of other popular engine performance upgrades such as cylinder heads
- Designed to work in conjunction with the new FAST™ Big Mouth Throttle Body™ (92mm)
| Part Number |
54039B |
| Brand |
Fast |
| Engine Type |
Gen III/Gen IV |
| Port Style |
Cathedral |
| Throttle Body Port |
92mm |
| RPM Power Band |
1800-6000 |
NOTE: Does not include intake manifold gaskets. OEM LS2 fuel rails require an adapter kit.
*Item ships directly from vendor.
